Send InquiryDigital Double Rockwell Machine
Digital Double Rockwell Machine Specification
- Number of Specimens
- 1
- Temperature
- under40 Celsius (oC)
- Power Supply
- AC220V
- Usage
- Rockwell & Superficial Rockwell Hardness Testing
- Machine Weight
- 80 Kilograms (kg)
- Test Width
- 165 Millimeter (mm)
- Control Mode
- Automatic (loading/dwell/unloading)
Digital Double Rockwell Machine Trade Information
- Minimum Order Quantity
- 1 Set
- FOB Port
- Shanghai
- Payment Terms
- Telegraphic Transfer (T/T)
- Supply Ability
- 1000 Sets Per Year
- Delivery Time
- 15-20 Days
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Wooden Case
- Main Export Market(s)
- Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Central America, Asia, Africa
- Main Domestic Market
- All India
- Certifications
- CE
About Digital Double Rockwell Machine

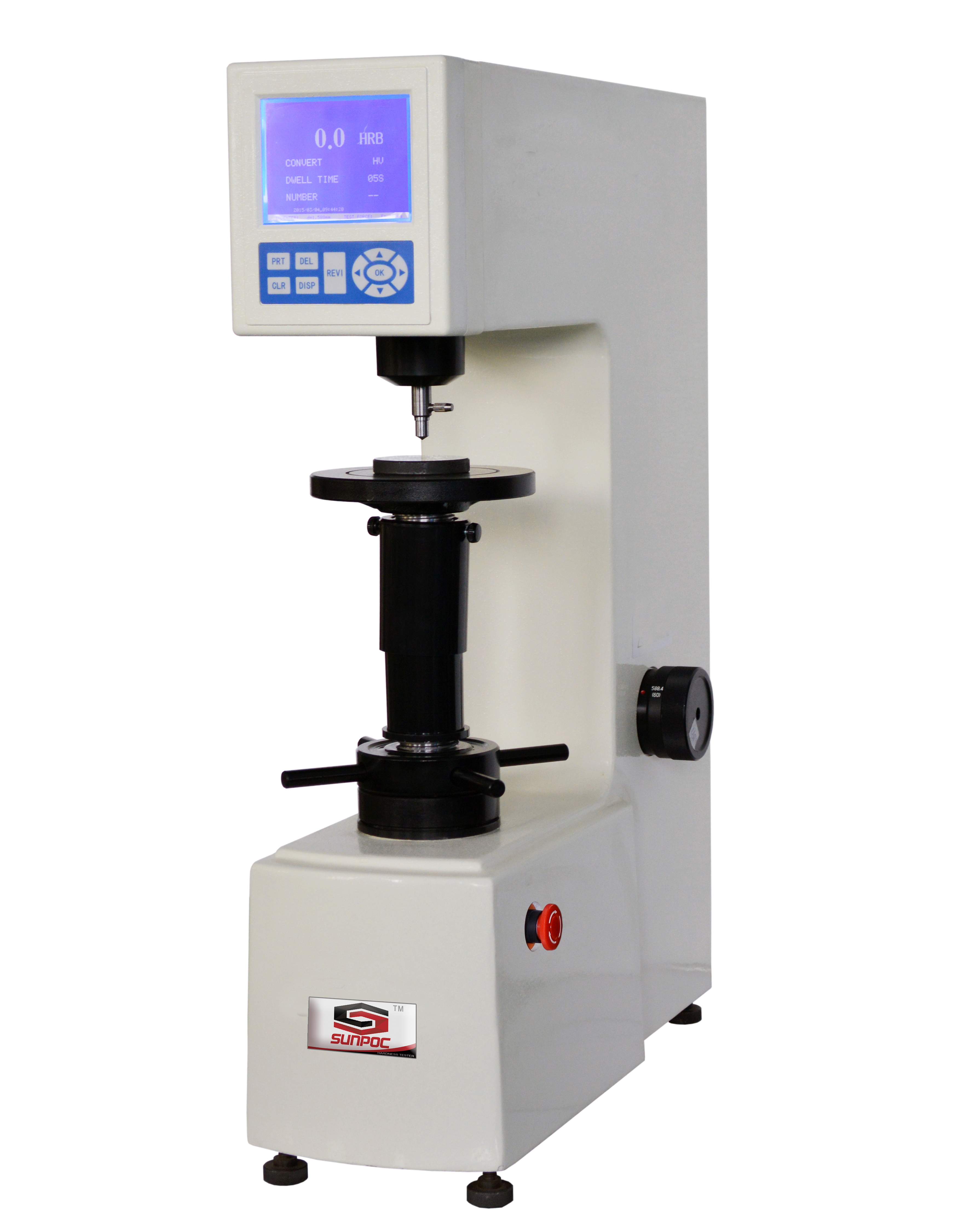

Digital Double Rockwell Hardness Tester
SHR-560 Digital Double Rockwell Machine for most exact test requirements in the workshops and laboratories etc. This machine is designed and developed for measuring hardness of metals and alloys of all types, flat, round, hard or soft, tubular or irregular in shape. We are appreciated for its high processing unit and compact design of machine. The SHR-560 Digital Double Rockwell Machine is simple in design, easy to operate, yet very accurate and reliable. Selection of all the Rockwell and superficial Rockwell scales; Conversion scales of different kinds of hardness; Test results can be saved and printed out, automatic calculation of maximum, minimum and average value; With RS232 interface for connecting to the computer.Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting etc.
Technical Specification :-
| Model | SHR-560 |
| initial test force | 3kgf (29.42N), 10kgf (98.07N) |
| total test force | 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| indenter | diamond rockwell indenter, 1.588mmball indenter |
| loading method | automatic (loading/dwell/unloading) |
| hardness reading | lcd screen display |
| test scale | HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| conversion scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
| data output | built-in printerRS232 interface |
| resolution | 0.1HR |
| dwell time | 0~60s |
| height of specimen | 175mm |
| throat | 165mm |
| power supply | AC220V ; 50Hz |
| dimension(LWH) | machine :520*215*740mmPacking: 650*370*980mm |
| weight | net weight: 80kg ; Gross weight: 100kg |
Standard accessories:
| No. | Name | Qty | No. | Name | Qty |
| 1 | instrument main body | 1 | 11 | large plane test table | 1 |
| 2 | 1.588mmball indenter | 1 | 12 | middle plane test table | 1 |
| 3 | diamond rockwell indenter | 1 | 13 | V-shaped test table | 1 |
| 4 | hardness block 60~70 HRC | 1 | 14 | horizontal regulating screw | 4 |
| 5 | hardness block 80~100 HRB | 1 | 15 | screw driver | 1 |
| 6 | hardness block 20~30 HRC | 1 | 16 | spanner | 1 |
| 7 | hardness block 65~80 HR30N | 1 | 17 | power cable | 1 |
| 8 | hardness block75~85 HR30T | 1 | 18 | fuse 2A | 2 |
| 9 | level | 1 | 19 | weight 1, 2, 3, 4, 5 | 5 |
| 10 | anti-dust cover | 1 | 20 | manual | 1 |
