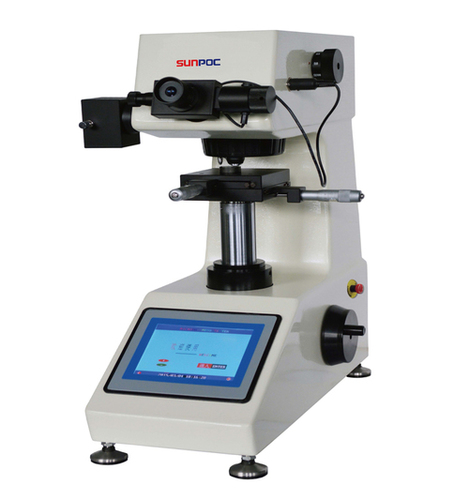

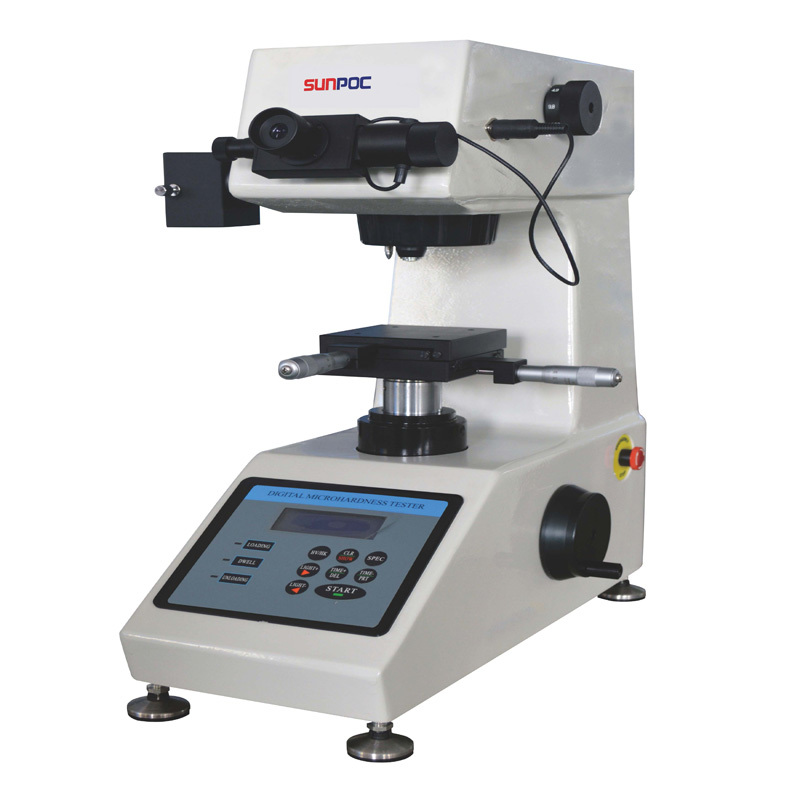

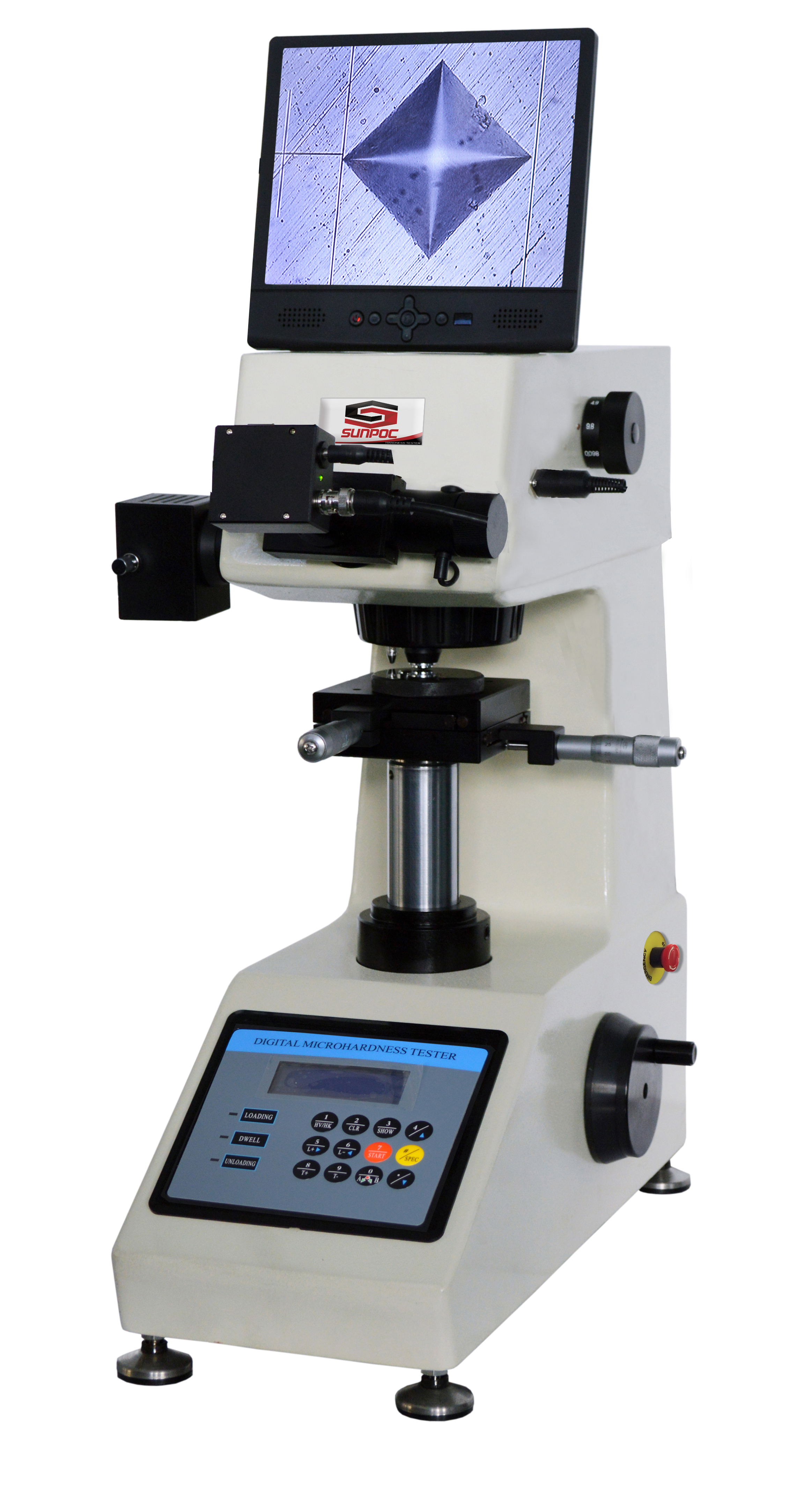

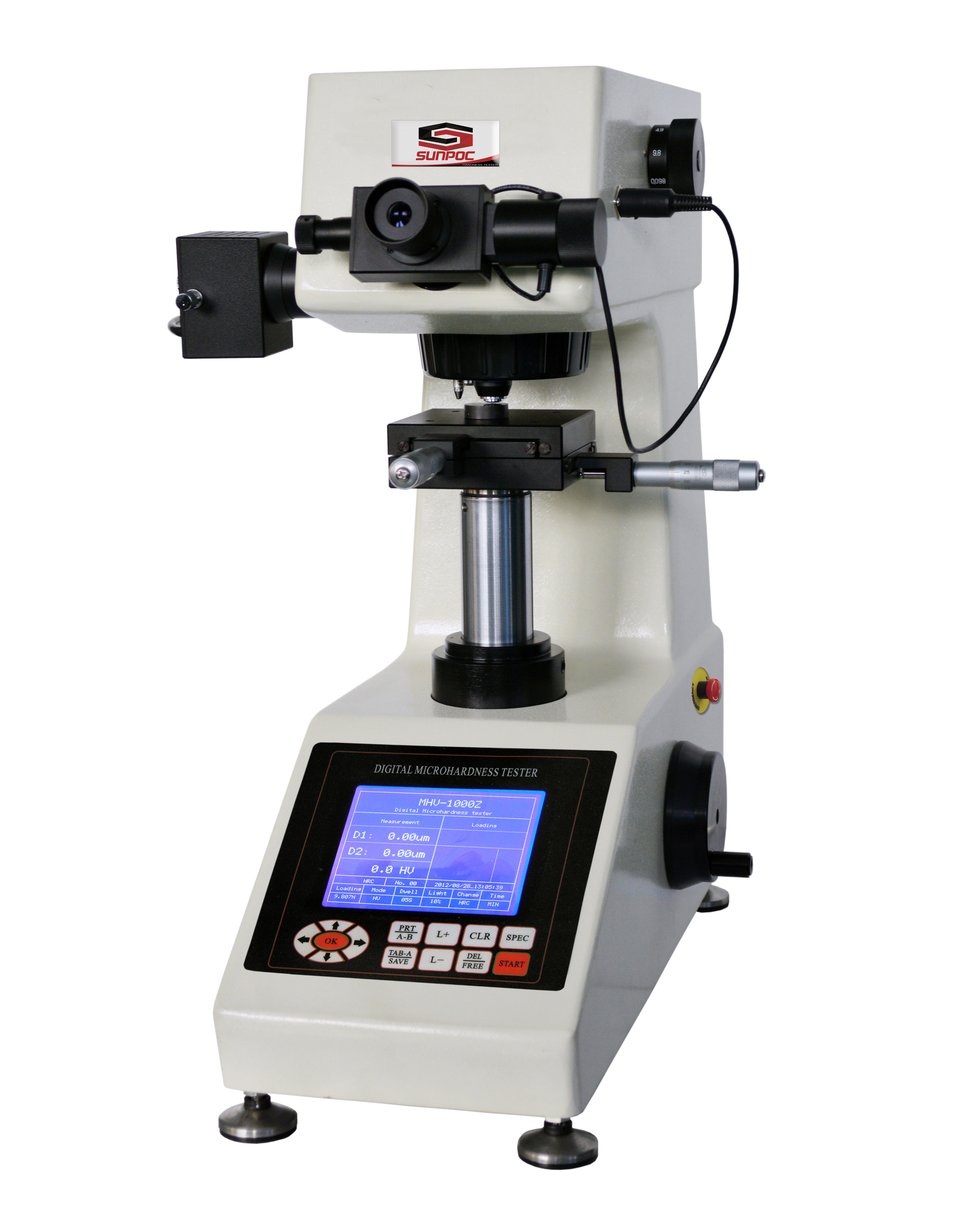

SMV-1000Z Digital Micro Vickers Hardness Testing machine

Name: SMV-1000Z Digital Micro Vickers Hardness Testing machine
Brand: GUIZHOU SUNPOC TECH INDUSTRY CO., LTD.
Price: 3700 USD
Availability: InStock

Price 3700 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

SMV-1000Z Digital Micro Vickers Hardness Testing machine Specification

Response Time
<2 seconds per result Seconds

Application
Micro hardness testing on metals, ceramics, glass, and thin material

Number of Specimens
Multiple specimen capability

Automation Grade
Semi-automatic

Equipment Type
Digital Micro Vickers Hardness Testing Machine

Display Type
Touchscreen digital display

Test Range
5g to 1000g (test load range)

Mounting Type
Bench-top

Hardness
Micro Vickers

Specimen Size
Min: 15x30 mm; Max: 100x100 mm Millimeter (mm)

Operating Voltage
220V/110V selectable Volt (V)

Power Supply
AC220V5%, 50/60Hz

Max Height
100 mm

Features
Auto turret, high precision, data storage

Frequency
50/60Hz Hertz (HZ)

Humidity
85% RH

Temperature
Operating temperature: 10C ~ 30C Celsius (oC)

Interface Type
USB data output

Resolution
0.01 HV

Usage
Laboratory, industrial QC

Machine Weight
approx. 35 kg Kilograms (kg)

Test Speed
Standard indentation speed: 50 m/s

Test Width
Accessible test width up to 100 mm Millimeter (mm)

Test Stroke
Vertical stroke: 20 mm

Control Mode
Digital automated control

Calibration Mode
Built-in automated calibration

Software Functions
Statistical analysis, report generation

Indentation Magnification
10x, 40x objectives

Light Source
LED cold light, adjustable

Standards Compliance
ASTM E384, ISO 6507

XY Test Table Movement
Manual precision adjustment

Load Dwell Time
1~99 seconds adjustable

Safety Features
Overload and short circuit protection

SMV-1000Z Digital Micro Vickers Hardness Testing machine Trade Information

Minimum Order Quantity
1 Set

Delivery Time
5-10 Days

Main Domestic Market
All India

Certifications
CE

About SMV-1000Z Digital Micro Vickers Hardness Testing machine

Specifications

Model	SMV-1000	SMV-1000Z
Test Load (gf/N)	10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
	0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range	1HV2967HV
Test Mode	HV/HK
Loading Method	Automatic (loading/dwell/unloading)
Turret	Three Positions; Manual	Three Positions; Automatic
Hardness Scales Conversion	Knoop, Brinell, Rockwell: A, B, C, D, G, K, 15N, 30N, 45N, 15T, 30T, 45T
Objectives	10X(observation), 40X(measure)
Eyepiece	10X Digital Measuring Eyepiece
Total Magnification	100X, 400X
Resolution	0.0625 m
Dwell Time	0-60 seconds
Illumination	Halogen Lamp
X-Y Stage	Size: 100x100mm; Travel: 25x25mm; Resolution: 0.01mm
Max. Height Capacity	100mm
Throat	98mm
Power Supply	AC220V /50Hz
*Overall Dimension (LWH, mm)*	Machine: 480 x 325 x 545; Packing Dimensions: 600 x 360 x 800
Weight	Net Weight: 31kg; Gross Weight: 44kg

High-Precision Micro Hardness Testing

The SMV-1000Z is engineered for elevated accuracy in micro Vickers hardness assessments, offering 1.0 HV accuracy and 0.01 HV resolution. Its auto turret and manual XY test table enable precise specimen positioning, while the digital touchscreen display ensures easy access to measurement data and operational parameters. Suitable for research, manufacturing quality control, and material analysis, it efficiently handles multiple specimen types and sizes.

User-Friendly Controls and Advanced Functions

Equipped with digital automated controls and intuitive touchscreen operation, the SMV-1000Z simplifies hardness testing. Its built-in automated calibration ensures consistent results, while the software provides advanced statistical analysis and report generation. Data storage and USB output make it easy to manage and export test results, streamlining laboratory workflows.

FAQs of SMV-1000Z Digital Micro Vickers Hardness Testing machine:

Q: How does the SMV-1000Z perform micro hardness testing on various materials?

A: The SMV-1000Z utilizes Micro Vickers principles, applying loads from 5g to 1000g through an automated turret system. Its 10x and 40x objectives allow users to observe indentations on metals, ceramics, glass, and thin samples. The test is digitally controlled, with results displayed on a touchscreen interface and stored for further analysis.

Q: What software features are included for result evaluation and reporting?

A: This machine provides statistical analysis, report generation, and data storage capabilities. Users can automatically compile results, create comprehensive reports, and export data via USB, promoting efficient laboratory data management and traceability.

Q: When should the built-in automated calibration mode be used?

A: The automated calibration mode should be engaged routinely before starting a new series of tests or whenever accuracy needs verification. This maintains consistent measurement standards and ensures reliable test results, reducing user intervention and potential errors.

Q: Where can the SMV-1000Z be installed and used effectively?

A: With a bench-top mounting design and semi-automatic operation, it is ideal for laboratory environments, industrial quality control stations, and research facilities. Its compact size and adjustable operating parameters permit flexible placement and application within diverse settings.

Q: What is the process for adjusting specimen test conditions on this machine?

A: Operators can manually adjust the XY test table for precise specimen positioning and select the desired load and dwell time (1 to 99 seconds). The LED cold light source is also adjustable, optimizing visibility for each material type. The digital interface guides users through setting parameters for each test.

Q: How does the SMV-1000Z benefit quality control and research applications?

A: By delivering accurate, reproducible hardness results rapidly (<2 seconds response time per measurement), and supporting a wide range of sample sizes and loads, the SMV-1000Z enables efficient, reliable material analysis. Advanced features like automated calibration and digital reporting enhance productivity and data integrity in quality control and research contexts.
