Send InquirySurface Roughness Tester
Surface Roughness Tester Specification
- Temperature
- min: under zero 20. max:40 Celsius (oC)
- Humidity
- relative humidity <90%
- Number of Specimens
- 1
- Test Range
- Ra: 0.005-16.000 Rz: 0.02-160.00
- Power Supply
- 9V
- Specimen Size
- 158mm*64mm*46mm Millimeter (mm)
- Usage
- Roughness Test
- Capacity
- 100 groups T/hr
- Machine Weight
- 0.3 Kilograms (kg)
- Control Mode
- manual
Surface Roughness Tester Trade Information
- Minimum Order Quantity
- 1 Set
- FOB Port
- Shanghai
- Supply Ability
- 1000 Sets Per Week
- Delivery Time
- 10 Days
- Sample Policy
- Contact us for information regarding our sample policy
- Main Domestic Market
- All India
- Certifications
- CE
About Surface Roughness Tester
This SRT-300 Surface Roughness Tester finds application in production site, workshop and laboratory in factory. We design this tester under the firm guidance of diligent supervisors using high quality materials and components. This is utilized to measure the roughness of a work piece with a huge measuring range. Our SRT-300 surface roughness tester is equipped with built-in lithium ion rechargeable battery and control circuit with high capacity. SRT-300 surface roughness Tester comes in different specifications for customers.
Key Features
- Electromechanical integration design, small volume, lightweight, easy to use;
- Using DSP chip to control and data processing, high speed, low power consumption
- 128 x 64 LED dot matrix display, digital / graphic display
- Good in display
- Compatible with ISO, DIN, ANSI, JIS national standards
- Residual quantity icon, prompting the user to charge
- Continuous working time: more than 20 hours
- Time clock setting
- Automatic shutdown
- Power saving machine
- Measurement information display
- Can be connected to a computer and printer
- Optional different sensor
- Optional bluetooth function.
Technical Specification :-
| Testing parameters | Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y, RzJIS,Rsk,Rku,Rsm,Rmr,Rx; |
| Measuring range (um) | Ra: 0.005-16.000 Rz: 0.02-160.00 |
| Sample length (mm) | 0.25, 0.80, 2.50 |
| Evaluation length(mm) | (1-5)L |
| Maximum drive stroke | 17.5mm/0.7inch |
| Indication accuracy | 0.001 |
| Indication error | (7-10)% |
| variability | <6% |
| Data storage | 100 groups |
| power | Rechargeable li-battery |
| Working temperature | -20-40 |
| Relative humidity | <90% |
| size | 158mmx64mmx46mm |
| weight host | 300g |
| No. | Name | Quantity |
| 1 | host | 1 |
| 2 | standard sensor | 1 |
| 3 | calibration blockand bracket | 1 |
| 4 | bracket | 1 |
| 5 | charger | 1 |
| 6 | adjustable support | 1 |
| 7 | operating manual | 1 |
| 8 | warranty card | 1 |
| 9 | certificate of approval | 1 |
| 10 | instrument case | 1 |
| 11 | USB cable | 1 |
| 12 | software | 1 |
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Surface Roughness Tester Category

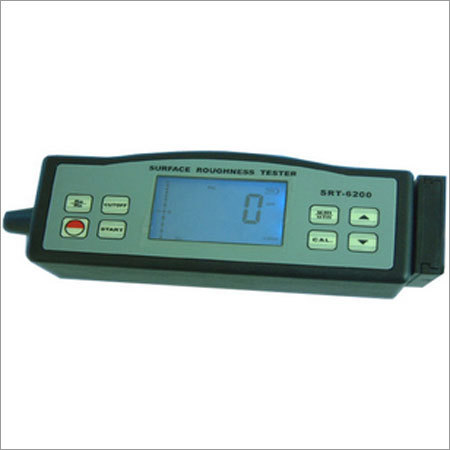

Digital Surface Roughness Tester
