Send InquiryElectromotion Multifunction Hardness Tester Machine
Electromotion Multifunction Hardness Tester Machine Specification
- Hardness
- Shore A/D or custom
- Specimen Size
- Up to 100 mm
- Power Supply
- AC 220V10%, 50Hz
- Number of Specimens
- 1
- Automation Grade
- Automatic
- Interface Type
- RS232/USB
- Max Height
- 350 mm
- Application
- Material Hardness Testing (Rubber, Plastic, etc.)
- Accuracy
- 1%
- Response Time
- <1 sec
- Measuring Range
- 0~1000 N
- Operating Voltage
- 220 V
- Gas Pressure
- 0.4~0.8 MPa
- Humidity
- 85% RH
- Resolution
- 0.1 N
- Features
- Automatic data recording, Multi-function testing, User-friendly interface
- Mounting Type
- Tabletop
- Test Range
- 0~1000 N (Newton)
- Equipment Type
- Multifunction Hardness Tester
- Port Size
- Standard
- Display Type
- Digital LCD
- Temperature
- 10C 35C
- Frequency
- 50 Hz
- Usage
- Laboratory/Industrial
- Capacity
- 1000 N
- Machine Weight
- 65 kg
- Test Speed
- 0.1 to 25 mm/min
- Test Width
- 150 mm
- Test Stroke
- 100 mm
- Control Mode
- Automatic/Electronic Control
- Dimension
- 450 x 300 x 500 mm
- Operating System
- Microcontroller-Based
- Test Method
- Compression, Penetration, Hardness
- Specimen Holder
- Adjustable Clamp
- Compliance Standards
- ISO, ASTM
- Accessories Included
- Calibration Block, Power Cord, User Manual
- Data Output
- Digital Print & External Storage
- Lighting
- Integrated LED
- Software
- Optional Data Analysis Software
- Safety Features
- Overload Protection, Emergency Stop
- Color
- White/Grey
- Noise Level
- <55 dB
- Memory Storage
- Internal & USB Export
- Load Cell Sensitivity
- High Precision
Electromotion Multifunction Hardness Tester Machine Trade Information
- Minimum Order Quantity
- 1 Set
- FOB Port
- Shanghai
- Payment Terms
- Telegraphic Transfer (T/T)
- Supply Ability
- 100 Sets Per Week
- Delivery Time
- 10 Days
- Sample Policy
- Contact us for information regarding our sample policy
- Main Domestic Market
- All India
- Certifications
- CE
About Electromotion Multifunction Hardness Tester Machine

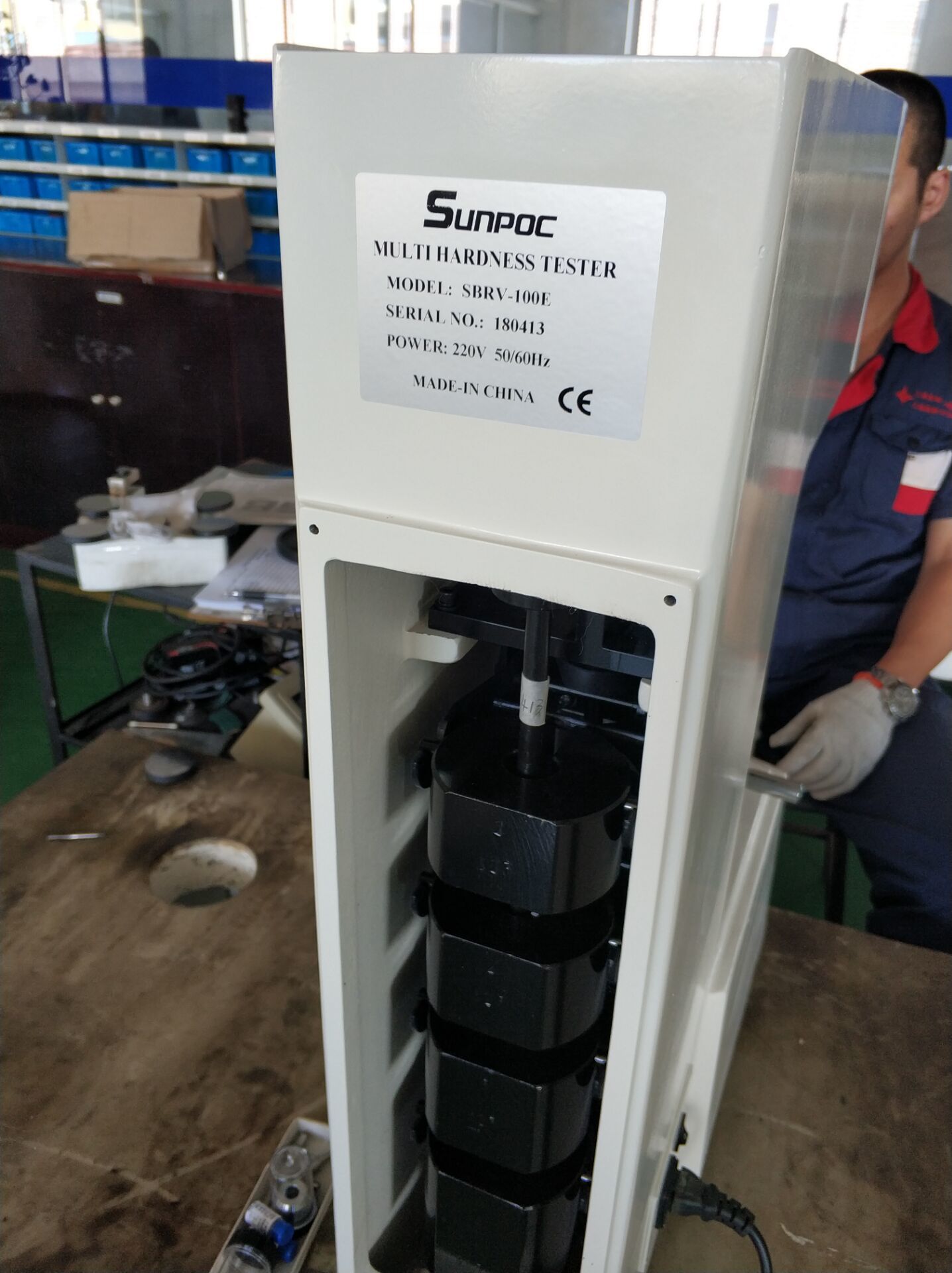

Electromotion Multifunction Hardness Tester
Key Features : -
- This machine is multifunctional hardness tester with brinell , rock well and vickers 3 test modes and 7 level of test forces.
- Equipped with automatic system and test force loading , dwell unload.
- Easy to operate
- Mostly used in industrial enterprises and scientific research institutes
Technical Specification :-
| Type | Rockwell | Brinell | Vickers |
| Preliminary test force(N) | 98 | 98 | 98 |
| Testing forces (kgf) | 60, 100, 150kgf | 30, 31.25, 62.5, 100, 187.5kgf | 30, 100kgf |
| Hardness test (N) | 588.2, 980.7, 1471N | 294.2, 306.5, 612.9, 980.7, 1839N | 294.2, 980.7N |
| Resolution | 0.5HR | 4m | 2m |
| Indenter | diamond indenter 1.588mm | 2.5mm, 5mm ball indenter | diamond indenter |
| Value reading | dial | check hardness table | check hardness table |
| Dwell time | 2~60s | 2~60s | 2~60s |
| Magnification of microscope | / | 37.5X | 75X |
| Max height of specimens(mm) | 175mm | 100mm | 115mm |
| Throat | 165mm | 2~60s | 2~60s |
| Power supply | AC220V 50/60Hz | ||
| Net weight(kg) | 90 | ||
| Dimensions(mm) | 520x240x700mm packing dimension: 650x370x950mm | ||
| Weight | Net Weight: 80kg Gross Weight: 105kg | ||
Standard accessory:
| No. | Name | Qty | No. | Name | Qty |
| 1 | Instrument Main Body | 1 | 14 | Diamond Rockwell Indenter | 1 |
| 2 | Diamond Vickers Indenter | 1 | 15 | 1.588mm, 2.5mm, 5mmBall Indenter | 3 |
| 3 | Slipped Test Table | 1 | 16 | Middle Plane Test Table | 1 |
| 4 | Large Plane Test Table | 1 | 17 | V-shaped Test Table | 1 |
| 5 | 15 Digital Measuring Eyepiece | 1 | 18 | 2.5x 5Objective | 2 |
| 6 | Microscope System (include the inside light and outside light) | 1 | 19 | Hardness Block 150~250 HBW 2.5/187.5 | 1 |
| 7 | Hardness Block 60~70 HRC | 1 | 20 | Hardness Block 20~30 HRC | 1 |
| 8 | Hardness Block 80~100 HRB | 1 | 21 | Hardness Block 700~800 HV30 | 1 |
| 9 | Weights 0, 1, 2, 3, 4 | 5 | 22 | Power Cable | 1 |
| 10 | Fuse 2A | 2 | 23 | Horizontal Regulating Screw | 4 |
| 11 | Level | 1 | 24 | Spanner | 1 |
| 12 | Screw Driver | 1 | 25 | Anti-dust Cover | 1 |
| 13 | Usage Instruction Manual | 1 |
|
|
|
High-Precision Multifunction Testing
With an advanced load cell and automatic/electronic control, the hardness tester offers exact measurements for compression, penetration, and hardness. Users benefit from a wide measuring range (01000 N) and rapid response time (<1 sec), making it ideal for laboratory and industrial applications.
User-Friendly Control and Data Management
The integrated microcontroller-based operating system ensures seamless automatic operation. Test data are conveniently recorded, displayed on the digital LCD, and exported via RS232/USB interfaces or saved internally/externally. Optional software supports advanced data analysis for deeper insights.
Reliable Safety and Compliance
Safety is prioritized through overload protection and an emergency stop feature. The machine adheres to ISO and ASTM standards, ensuring global compatibility and reliability, while maintaining low noise levels (<55 dB) and stable performance across standard test environments.
FAQs of Electromotion Multifunction Hardness Tester Machine:
Q: How is the Electromotion Multifunction Hardness Tester operated and controlled?
A: The machine runs on a microcontroller-based operating system with automatic and electronic control modes, ensuring intuitive operation through a user-friendly interface. Users can easily adjust settings and start tests with minimal training.Q: What materials and specimen sizes can the tester accommodate?
A: This device is designed to test various materials, such as rubber and plastic. It supports specimen sizes up to 100 mm and a maximum test width of 150 mm, with an adjustable clamp holder for secure positioning.Q: When should the calibration block included be used?
A: The calibration block is recommended for use before initial testing and periodically as part of routine maintenance. It helps ensure the machine maintains its accuracy and complies with measurement standards.Q: Where can data produced by the tester be stored or exported?
A: Test results can be stored in the machines internal memory or exported via USB and RS232 interfaces. For enhanced analysis, data can integrate with optional data analysis software for further review and reporting.Q: What is the process for conducting a hardness test using this equipment?
A: To perform a test, securely mount the specimen using the adjustable clamp, select the desired testing mode, and input test parameters. The machine automatically applies force within the 01000 N range while recording and displaying results on the digital LCD.Q: Why is integrated LED lighting beneficial during testing?
A: Integrated LED lighting provides clear visibility of the test area, ensuring precise specimen placement and observation throughout the testing process, which helps improve accuracy and reduce operator errors.Q: How does the machine enhance safety and reliability during operation?
A: Safety is reinforced by features like overload protection and an emergency stop button. The machine also meets ISO and ASTM standards and operates quietly (<55 dB), contributing to a safe and comfortable lab or industrial environment.
