Send InquiryVickers Hardness Tester Machine
Vickers Hardness Tester Machine Specification
- Test Range
- 1HV~2967HV
- Number of Specimens
- 1
- Usage
- Vickers hardness test for metal
- Capacity
- 0.3-50 Kilogram(Kg)
- Machine Weight
- 35 Kilograms (kg)
- Test Stroke
- 130mm
Vickers Hardness Tester Machine Trade Information
- Minimum Order Quantity
- 1 Set
- FOB Port
- Shanghai
- Supply Ability
- 1000 Sets Per Day
- Delivery Time
- 7-15 Days
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Wooden Case (fumigation-free)
- Main Export Market(s)
- Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Central America, Asia, Africa
- Main Domestic Market
- All India
- Certifications
- CE
About Vickers Hardness Tester Machine
Vickers Hardness Tester Machine

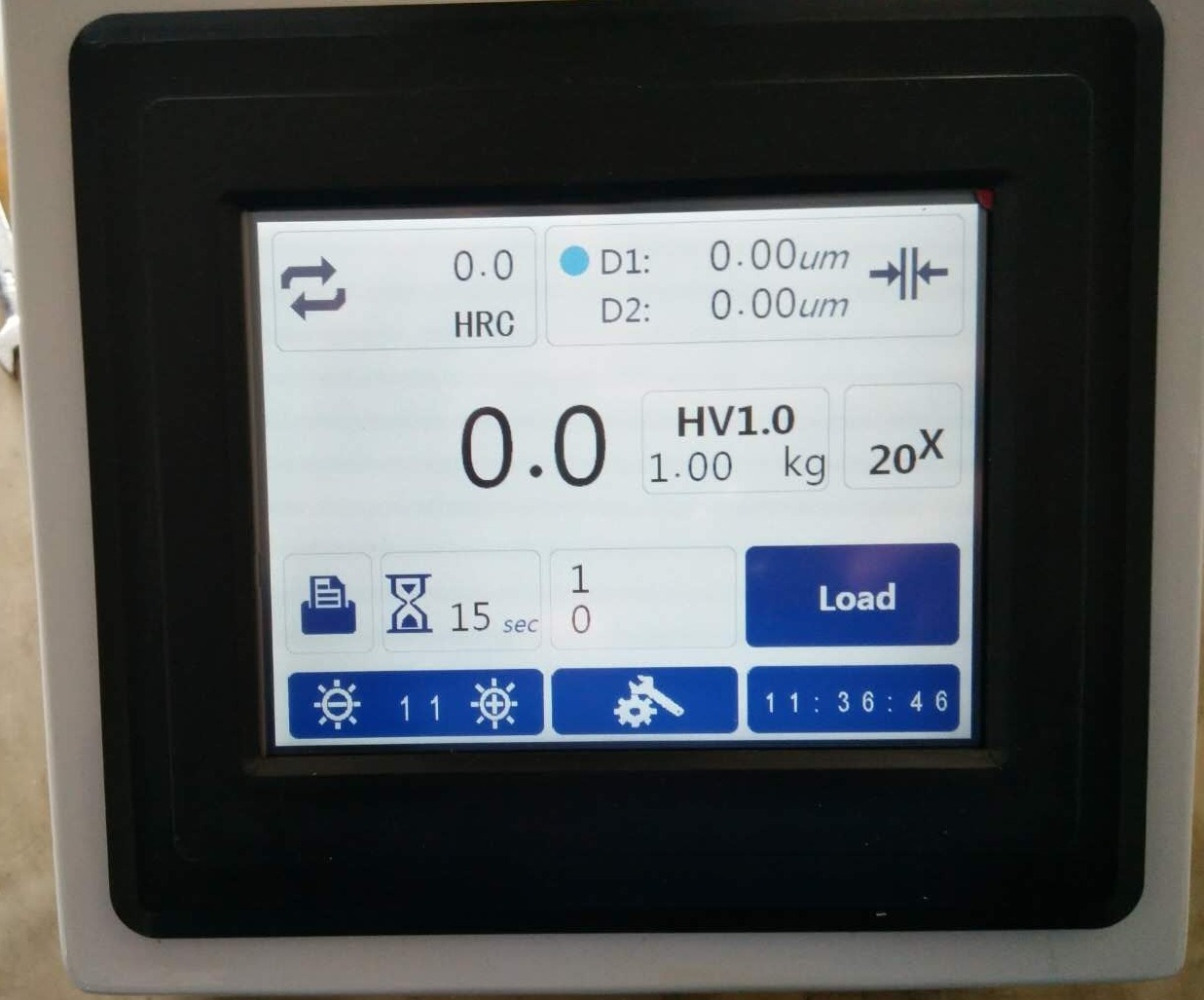

Blessed and supported by the team of high trained personnel, our company is known as one of the leading manufacturers and suppliers of Vickers Hardness Tester Machine. We provide a wide range of these testers to different industries as per the requirements. This device has built in printer for test result print out. Moreover, it also has LCD screen and CCD image automatic system. It is known for their compact design, smooth performance and long working life. Our customers can avail from us these testers at cost effective prices and that too within the stipulated time period.
- l Adopt closed-loop loading control system to enhance the precision of the test force and the repeatability and stability of the indicating value.
- Due to its 10X digital measuring eyepiece, it can show the test mode, indentation length, dwell time, test force, test times, conversion scale and date and time directly without checking the conversion table or inputting the indentation diagonal.
- l Get the hardness value automatically and show it on the screen by pressing the confirmation button on eyepiece after measuring the indentation length.
- l Built-in printer for test results printout
- l Testing results can be saves for checking.
-
- l RS232 interface for connecting to PC
- The SHV-MZ Series is an latest combining the optics, mechanic and electrics features.
- l Optional LCD video measuring device and CCD image automatic measuring system.
- Standard Compliance: ISO 6507; ASTM E92; JIS Z2244; GB/T 4340.2
Specifications:
| Model | SHV-500MZ/1000MZ/3000MZ/5000MZ |
| Test Force (kgf,N) | 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf |
| 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N | |
| Test Force (kgf,N) | 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf |
| 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N | |
| Test Force (kgf,N) | 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf |
| 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N | |
| Test Force (kgf,N) | 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf |
| 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N | |
| Test Range | 1HV~2967HV |
| Loading Method | Automatic (loading/dwell/unloading) |
| Turret | Automatic |
| Conversion Scale | HK, HRA, HRB, HRC, HRD, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB |
| Data Output | Built-in Printer; RS232 Interface |
| Objectives | 20X(observation), 40X(measure) |
| Eyepiece | 10X Digital Measuring Eyepiece |
| Total Magnification | 200X, 400X |
| Resolution | 0.125 m, 0.0625 m |
| Dwell Time | 0-60 seconds |
| Illumination | Halogen Lamp |
| X-Y Stage | Size: 100x100mm; Travel: 25x25mm; Resolution: 0.01mm |
| Max. Height Capacity | 170mm |
| Throat | 130mm |
| Power Supply | AC220V/50Hz; AC110V/60Hz |
| Overall Dimension (LxWxH, mm) | Machine: 530 x 280 x 630; Packing Dimensions: 620 x 450 x 740 |
| Weight | Net Weight: 35kg; Gross Weight: 47kg |
Standard Accessories:
| No. | Name | Qty. | No. | Name | Qty. | |
| 1. | Machine | 1 Set | 8. | 10X Digital Measuring Eyepiece | 1 PC | |
| 2. | Vickers Indenter (Diamond) | 1 PC | 9. | Objectives: 20X; 40X | 2 PCS | |
| 3. | X-Y Stage | 1 PC | 10. | Level Adjustment Screws | 4 PCS | |
| 4. | SHV-500MZ | Hardness Block 400~500 HV5 | 1 PC | 11. | Spirit Level / Level Gauge | 1 PC |
| Hardness Block 700~800 HV1 | 1 PC | 12.
| Internal Hexagonal Wrench 2.5mm | 1 PC | ||
| 5. | SHV-1000MZ | Hardness Block 700~800 HV10 | 1 PC | 13. | Screw Driver | 1 PC |
| Hardness Block 700~800 HV1 | 1 PC | 14. | Halogen Lamp:12V, 15~20W | 1 PC | ||
| 6. | SHV-3000MZ | Hardness Block 400~500 HV5 | 1 PC | 15. | Fuse 1A | 2 PCS |
| Hardness Block 700~800 HV30 | 1 PC | 16. | Anti-dust Cover | 1 PC | ||
| 7. | SHV-5000MZ | Hardness Block 400~500 HV5 | 1 PC | 17. | Power Cable | 1 PC |
| Hardness Block 700~800 HV30 | 1 PC | 18. | User Manual | 1 PC | ||
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
