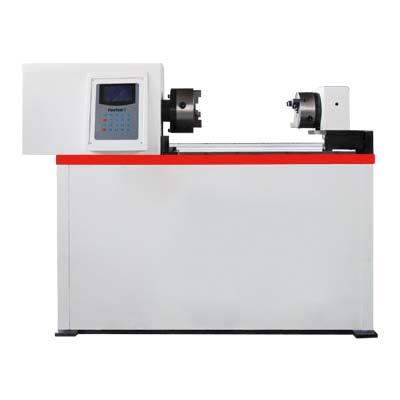

Our company is reliable manufacturer and supplier of Digital Torsion Tester. It is uniquely trial of various sorts of metal wire enameled wire break quality and the imperviousness to turn number. Test strategy for the specimen is cinched at both closures, one end is fixed on the flip side is constant turn practice switched torsion. To sever or test film coated, the uncovered conductor, record its imperviousness to turn number. Digital Torsion Tester is available with us reasonable rates.

Key features :-

Widely used to measure metallurgical steel; machinery manufacturing; quality control; civil aviation etc
It has high-precision torque sensor detects torque, encoders measure the rotation angle, manual loading, liquid crystal display test results.
This machine has a maximum torque, angle and so the reverse indicator
Use metal materials , non -metallic materials and composite materials
precise control of its powerful control, data processing capability, high reliability

Technical Specification :-

Model	NJS-01	NJS-02
	NJS-01AElectronic	NJS-02AElectronic
Max Test Torque	100Nm	200Nm
Torque display value	2-100Nm	4-200Nm
Min. reading of test torque	0.1Nm	0.1Nm
Relative Error of Torque Display-value	1%
Repetitive Error of Torque Display-valu	1%
Max. reading of torsion angle	0 ~ 9999.9
Min. reading of torsion angle	0.01
Relative Error of Torsional Angle	1%
Max. distance between torsion clamp	0-260mm (Max range is 700mm)
Power supply	220V10%50Hz
Machine over size	950X330X4000mm
Weight	100kg

Advanced Digital Torque Measurement

This torsion testing machine boasts superior accuracy and reliability with a digital torque indication and angle of twist measurement, enabling precise assessment of materials torsional resistance. The fast response time and adjustable speed settings suit a range of testing requirements, while its geared drive ensures smooth and consistent operations. Memory storage allows convenient tracking of up to 1000 test results for quality control and research.

Robust and Safe Construction

Built with a heavy duty steel frame and powder-coated finish, this machine is engineered for durability and longevity. Workers safety is prioritized via built-in emergency stop and overload protection features. The self-centering, high-grip jaws provide a secure hold on specimens, ensuring reliable and repeatable torsion testing without risk of slippage.

User-Friendly Operation and Software Integration

Intuitive controls and a microprocessor-based interface simplify test setup and execution. The machine supports programmable test cycles, auto-stop, and data logging features. Results can be transferred via RS232 or optional USB interface and analyzed in Windows-compatible software, streamlining reporting, and traceability in industrial or research settings.

FAQs of Digital Torsion Testing Machine:

Q: How does the Digital Torsion Testing Machine ensure accurate torque and angle measurement?

A: The machine uses a digital torque sensor and angle of twist encoder, providing reliable measurements up to 9999 with an accuracy of 1% and a resolution of 0.01 Nm. Auto zero functions and calibrated digital systems further guarantee precise results.

Q: What is the process for conducting a torsion test using this equipment?

A: To perform a test, the specimen is inserted into the self-centering jaws. Test parameters are entered via the digital interface and the servo motor-controlled drive applies torsional force while data is displayed and recorded digitally. Results are saved automatically for review or export.

Q: Where can this machine be used most effectively?

A: The Digital Torsion Testing Machine is ideal for laboratories, industrial testing centers, and manufacturing quality control sections where accurate torsional property evaluation of metals and wires is critical.

Q: When should data be exported or analyzed from the machine?

A: Data can be exported immediately after each test or at a later time using memory storage, which holds up to 1000 results. Exporting is facilitated via RS232 or optional USB, and the data can be analyzed using Windows-compatible software.

Q: What safety features are included in this testing device?

A: Key safety features include an emergency stop switch, overload protection to prevent damage or accidents, and self-centering jaws that securely grip the specimen during testing.

Q: How does this machine benefit quality control processes?

A: By delivering precise, repeatable, and digitally saved results, the machine enhances traceability, allows for programmable and automated test cycles, and quickly identifies material conformity to ASTM E143 and IS standards.
