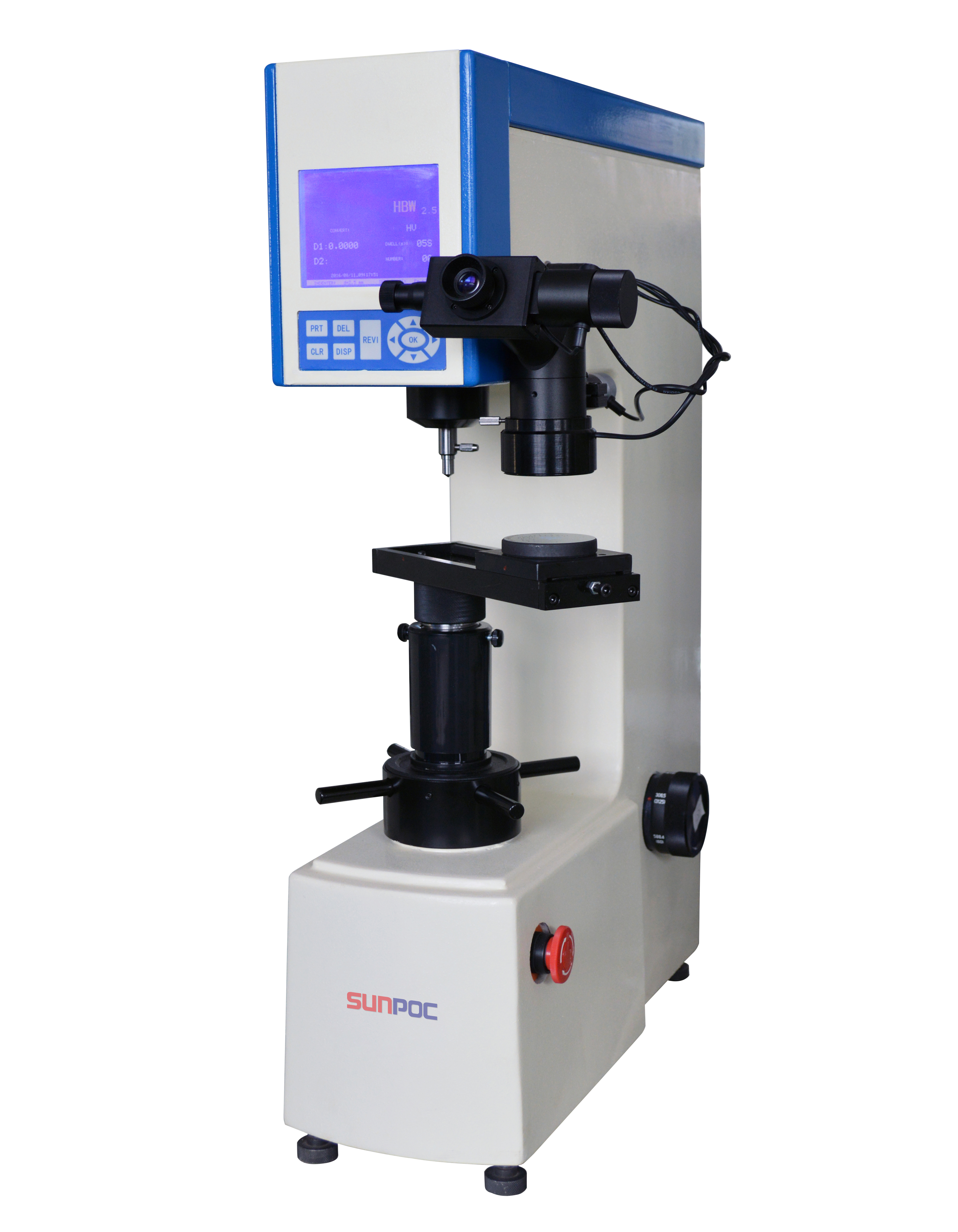

Send InquirySBRV-100D Digital Multifunction Hardness Tester Machine ( LED screen)
Price 6000 INR/ Set
SBRV-100D Digital Multifunction Hardness Tester Machine ( LED screen) Specification
- Temperature
- 10C - 35C Celsius (oC)
- Accuracy
- 1 Hardness Unit %
- Display Type
- LED Screen
- Mounting Type
- Bench Top
- Specimen Size
- Max height 185 mm, depth 135 mm Millimeter (mm)
- Equipment Type
- Digital Multifunction Hardness Tester
- Number of Specimens
- 1
- Port Size
- Standard
- Features
- Digital Readout, LED Display, Automatic Loading/Unloading, Data Storage
- Response Time
- 2 seconds Seconds
- Frequency
- 50 Hz Hertz (HZ)
- Application
- Metallurgical, Engineering, Quality Control
- Automation Grade
- Semi-Automatic
- Max Height
- 185 mm
- Test Range
- 8-650 HB, 20-95 HRB, 20-70 HRC
- Humidity
- 85% RH
- Operating Voltage
- 220V AC Volt (V)
- Power Supply
- AC 220V 10%, 50 Hz
- Hardness
- Multiple Scales: HB, HRB, HRC
- Interface Type
- RS232
- Resolution
- 0.1 Unit
- Usage
- Hardness Testing for Metals
- Capacity
- 300 kgf max Kg
- Machine Weight
- 95 kg Kilograms (kg)
- Test Speed
- 0.08 mm/s
- Test Width
- 150 mm Millimeter (mm)
- Test Stroke
- 80 mm
- Control Mode
- Digital Control
- Data Export
- USB and RS232 supported
- Lighting
- Inbuilt illumination for work surface
- Digital Output
- Yes, with memory function
- Indenter Types
- Ball indenter, Diamond cone
- Finish
- Powder coated anti-corrosive body
- Test Methods
- Brinell, Rockwell, Vickers supported
- Protection
- Overload protection system
- Calibration
- Automatic and manual calibration options
- Load Application Time
- 5-60 seconds (adjustable)
- Loading Method
- Automatic by motorized system
SBRV-100D Digital Multifunction Hardness Tester Machine ( LED screen) Trade Information
- Minimum Order Quantity
- 1 Set
- FOB Port
- Shanghai
- Delivery Time
- 5-10 Days
- Main Export Market(s)
- Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Central America, Asia, Africa
- Main Domestic Market
- All India
- Certifications
- CE
About SBRV-100D Digital Multifunction Hardness Tester Machine ( LED screen)
With the help of our adroit professionals & latest facilities, we have become a famous manufacturer & supplier of Digital Multifunction Hardness Tester Machine ( LED screen). It is in several specifications as per the requirements of customers. The anemometer is made with high-quality raw materials and latest technology. It is widely known for their features such as easy use andhandling, longer working life and dependable performance. We provide the Digital Multifunction Hardness Tester Machine ( LED screen) to both national &international market at reasonable prices.
Key Features :-
- Available for Brinell, Rockwell and Vickers testing
- Conversion between each hardness scale.
- Setting for hardness dwell time
- RS232 serial communication, offers extend functions for users.
This machine offers data save function. Users can browse the testing page and print out the testing result.
Technical Specification :-
|
Type |
Rockwell |
Brinell |
Vickers |
|
Preliminary test force(N) |
98 |
98 |
98 |
|
Testing Forces (kgf) |
60, 100, 150kgf |
30,31.25,62.5,100,187.5kgf |
30, 100kgf |
|
Hardness test (N) |
588.4, 980.7, 1471N |
294.2,306.5,612.9,980.7,1839N |
294.2, 980.7N |
|
Press head |
diamond indenter, 1.5875mm ball indenter |
2.5mm, 5mm ball indenter |
diamond indenter |
|
Scale |
HRA, HRB, HRC, HRD |
HBW1/30HBW2.5/31.25, HBW2.5/62.5, BW2.5/187.5 HBW5/62.5, HBW10/100, |
HV30, HV100 |
|
Conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
||
|
Accuracy |
2.0%(98N) 1.0% |
1.0% |
1.0% |
|
Resolution |
0.1HR |
0.5m |
0.25m |
|
Magnification |
/ |
37.5X |
75X |
|
Max height of specimens |
175 / 400mm(optional) |
100 /330mm(optional) |
115/ 345mm(optional) |
|
Throat |
165mm |
||
|
Loading method |
automatic (loading/dwell/unloading) |
||
|
Hardness reading |
LCD screen display |
||
|
Data output |
built-in printerRS232 interface |
||
|
Load dwell duration |
060s can be set. |
||
|
Dimensions |
LWH520240740mmpacking dimension: 650370980mm |
||
|
Weight |
Net Weight: 80kgGross Weight: 105kg |
||
|
Power supply |
AC220V5%5060Hz |
||
Standard accessory:
|
NO. |
Name |
Qty |
NO. |
Name |
Qty |
|
1 |
instrument main body |
1 |
14 |
diamond rockwell indenter |
1 |
|
2 |
diamond vickers indenter |
1 |
15 |
1.588mm, 2.5mm, 5mmball indenter |
3 |
|
3 |
slipped test table |
1 |
16 |
middle plane test table |
1 |
|
4 |
large plane test table |
1 |
17 |
V-shaped test table |
1 |
|
5 |
15 digital measuring eyepiece |
1 |
18 |
2.5, 5 Objective |
2 |
|
6 |
microscope system (include the inside lightand outside light) |
1 |
19 |
hardness block 150250 HBW 2.5/187.5 |
1 |
|
7 |
hardness block 6070 HRC |
1 |
20 |
hardness block 2030 HRC |
1 |
|
8 |
hardness block 80100 HRB |
1 |
21 |
hardness block 700800 HV30 |
1 |
|
9 |
weights 0, 1, 2, 3, 4 |
5 |
22 |
power cable |
1 |
|
10 |
fuse 2A |
2 |
23 |
horizontal regulating screw |
4 |
|
11 |
level |
1 |
24 |
spanner |
1 |
|
12 |
screw driver |
1 |
25 |
anti-dust cover |
1 |
|
13 |
usage instruction manual |
1 |
|
|
|
Advanced Digital Control and Versatility
Equipped with an intuitive LED display and automatic motorized loading system, the SBRV-100D offers precise control over hardness testing. Users can adjust load application time, select indenter types, and switch between Brinell, Rockwell, and Vickers methods seamlessly, making it suitable for varied metallurgical and quality assurance applications.
Efficient Data Handling and Export Functions
The hardness tester includes a memory function and supports USB and RS232 output interfaces. This allows users to store and export test data efficiently, facilitating convenient record-keeping and integration with laboratory software for further analysis or reporting.
Safety, Durability, and Accuracy
Featuring overload protection and a robust powder-coated anti-corrosive body, the SBRV-100D ensures operator safety and long-term durability. With automatic and manual calibration options, it delivers precise hardness measurements with an accuracy of 1 unit and a resolution of 0.1 unit, making it a reliable choice for critical applications.
FAQs of SBRV-100D Digital Multifunction Hardness Tester Machine ( LED screen):
Q: How does the SBRV-100D hardness tester apply loads during testing?
A: This machine uses an automatic motorized loading system, ensuring consistent and precise application of force for hardness testing. Users can set the load application time from 5 to 60 seconds, optimizing the process according to specimen requirements.Q: What types of hardness tests can be performed using the SBRV-100D?
A: The SBRV-100D supports Brinell, Rockwell, and Vickers test methods, allowing operators to conduct a variety of hardness assessments on metals using interchangeable ball indenter or diamond cone.Q: When should automatic calibration be used versus manual calibration?
A: Automatic calibration is ideal for routine operations and ensures quick setup with minimal user intervention. Manual calibration can be employed when specific accuracy adjustments are needed based on unique specimen characteristics or when verifying calibration against known standards.Q: Where can test results from the SBRV-100D be exported?
A: Test data can be exported through USB and RS232 interfaces for archiving, further analysis, or integration with laboratory information systems, streamlining data management and reporting.Q: What is the benefit of the built-in LED screen and digital output on this machine?
A: The LED screen provides clear, real-time display of test results and functions. Digital output ensures accurate recording and easy retrieval of data, reducing manual errors and improving workflow efficiency.Q: How does overload protection enhance the safety of using this hardness tester?
A: Overload protection prevents accidental damage to the machine and indenter during high-capacity testing. This feature safeguards operators and ensures reliable long-term performance.Q: What are the recommended specimen dimensions for use with the SBRV-100D?
A: The machine accommodates specimens up to 185 mm in height and 135 mm in depth, making it suitable for a diverse range of metallic samples typically found in engineering and metallurgical testing.
