Send InquirySMV-1000MZ Hardness Tester
Price 5700 INR/ Set
SMV-1000MZ Hardness Tester Specification
- Automation Grade
- Semi-automatic
- Power Supply
- AC 220V 10% 50Hz
- Hardness
- Microhardness (Vickers)
- Max Height
- 150 mm
- Test Range
- 1HV~2967HV
- Humidity
- 85% RH
- Equipment Type
- Micro Vickers Hardness Tester
- Temperature
- 10~35C Celsius (oC)
- Features
- Automatic Turret, Auto Measurement, Data Storage
- Specimen Size
- Max 150 mm (H) x 220 mm (W) Millimeter (mm)
- Resolution
- 0.1 m
- Application
- Metallurgical analysis, thin specimen surface testing, micro hardness testing
- Operating Voltage
- 220V AC Volt (V)
- Frequency
- 50 Hz Hertz (HZ)
- Port Size
- Standard 220V Power Socket
- Mounting Type
- Bench-top
- Display Type
- 7-inch Color Touch Screen
- Number of Specimens
- Single or Multiple (as per holder)
- Interface Type
- USB/RS232
- Response Time
- 1 second Seconds
- Accuracy
- 1.5% (HV0.2~HV1) %
- Usage
- TEST HARDNESS
- Machine Weight
- 31 Kilograms (kg)
- Test Speed
- 0.05~0.8 mm/s (adjustable)
- Test Width
- Max 220 mm Millimeter (mm)
- Test Stroke
- 25*25mm
- Control Mode
- Touch Screen Control
- Loading Force
- 10gf~1000gf adjustable
- Focusing System
- Coaxial coarse and fine adjustment
- Data Output
- USB/RS232
- Net Weight
- 31 kg
- Optical Magnification
- 100X, 400X
- Safety Compliance
- CE Certified
- Packing Dimensions
- 600 x 450 x 800 mm
- Software Support
- Windows-based image analysis software
- Illumination
- LED cold light source
- Gross Weight
- 40 kg
- Accessories Included
- Indenters, Test Blocks, XY Table, Weights, Manual
SMV-1000MZ Hardness Tester Trade Information
- Minimum Order Quantity
- 1 Set
- FOB Port
- SHANGHAI CHINA
- Payment Terms
- Telegraphic Transfer (T/T)
- Supply Ability
- 1000 Sets Per Week
- Delivery Time
- 15 Days
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Machine 1 Set Micro Vickers Indenter (Diamond) 1 PC Weights 6 PCS Weight Axis 1 PC X-Y Stage 1 PC Filament Stage 1 PC Thin Specimen Stage 1 PC Plain Clamping 1 PC Hardness Block 400~500 HV0.2 1 PC Hardness Block 700~800 HV1 1 PC
- Main Domestic Market
- All India
- Certifications
- CE
About SMV-1000MZ Hardness Tester
SMV-1000MZ Digital Micro Vickers Hardness Tester
Feature:
The digital micro vickers hardness tester adopts unique precision design of optics, mechanic and electrics features, make the indentation image clearer, and get more precise measurements. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and show on the large screen. Test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer. It can use optional Knoop indenter to measure Knoop hardness and be equipped with 2kg test force. Also it can be equipped with LCD video measuring device and CCD image automatic measuring system.
Standard: ISO 6507ASTM E384JIS Z2244GB/T 4340.2
Application: Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Advanced Precision Testing
Equipped with a microhardness Vickers indenter, the SMV-1000MZ delivers high-accuracy measurements (1.5% within HV0.2HV1) and a wide test range. It enables testing of thin or mounted specimens, supporting metallurgical analysis and surface hardness tasks across various materials.
User-Friendly Touch Screen Control
A large 7-inch color touch screen simplifies operation, offering intuitive selection of test modes, real-time measurement updates, and customizable settings for both single and multiple specimens. The automation and data storage features further streamline laboratory workflows.
Versatile Data Management
With USB and RS232 interfaces plus Windows-based image analysis software, data output and reporting are efficient and reliable. The tester supports exporting comprehensive results, making record-keeping and statistical analysis straightforward.
FAQs of SMV-1000MZ Hardness Tester:
Q: How does the SMV-1000MZ Hardness Tester operate its loading force adjustments?
A: The SMV-1000MZ allows users to adjust the loading force within a 10gf to 1000gf range directly from the touch screen interface. The system employs a precise semi-automatic control, ensuring consistent force application for every test.Q: What types of specimens can be tested and what are the size limitations?
A: This tester can handle single or multiple specimens, as per the holder configuration. The maximum specimen dimensions are up to 150 mm in height and 220 mm in width, making it suitable for various metallurgical and thin surface applications.Q: Where is data from the hardness tests stored, and how can it be exported?
A: Test data is stored on the devices internal memory and can be easily exported via USB or RS232 port. The included Windows-based software enables comprehensive report generation and further image analysis on a PC.Q: What process steps are involved in performing a hardness test with this machine?
A: To conduct a hardness test, mount the specimen, set the required load and magnification, focus using the coaxial knobs, and initiate the test via the touch screen. The automatic turret and quick measurement response ensure results in under one second.Q: When is the SMV-1000MZ particularly beneficial to use?
A: This tester is especially advantageous for applications requiring precise surface hardness evaluation of microstructures, coatings, or thin samplescommon in metallurgical labs, research institutions, and quality control environments.Q: How does the illumination system enhance test results?
A: The integrated LED cold light source provides consistent and clear illumination, reducing heat influence and improving measurement accuracy, especially when examining microstructures under 100X or 400X magnification.Q: What safety and compliance standards are met by the SMV-1000MZ?
A: The SMV-1000MZ is CE certified, adhering to rigorous international safety standards for laboratory equipment, ensuring reliable and secure operation during testing.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Micro Vickers Hardness Testing Machine Category

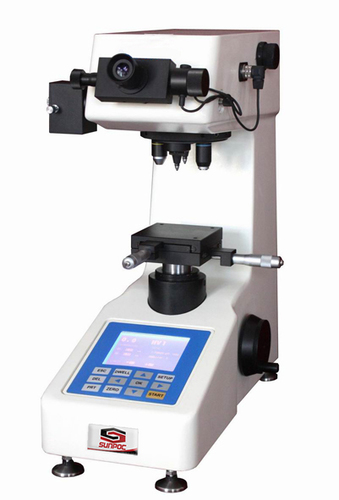

SMV-404 HARDNESS TESTING MACHINE
Price 7800 INR / Set
Minimum Order Quantity : 1 Set
Test Range : 1HV~2967HV
Test Stroke : 2525mm
Control Mode : Manual
Usage : TEST HARDNESS

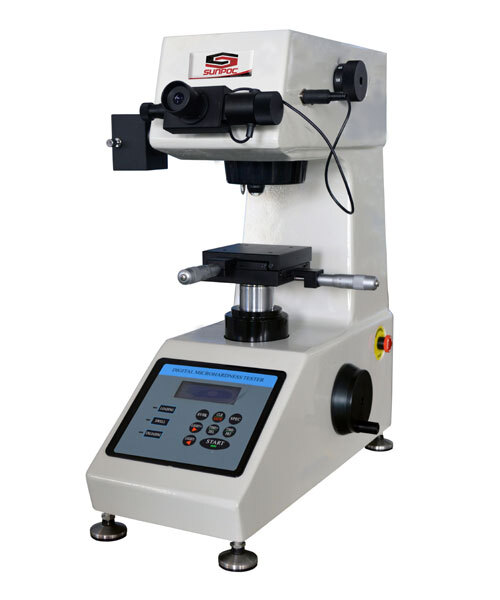

SMV-1000Z Digital Micro Vickers Hardness Testing machine
Price 3700 USD ($) / Set
Minimum Order Quantity : 1 Set
Test Range : 5g to 1000g (test load range)
Test Stroke : Vertical stroke: 20 mm
Control Mode : Digital automated control
Usage : Laboratory, industrial QC

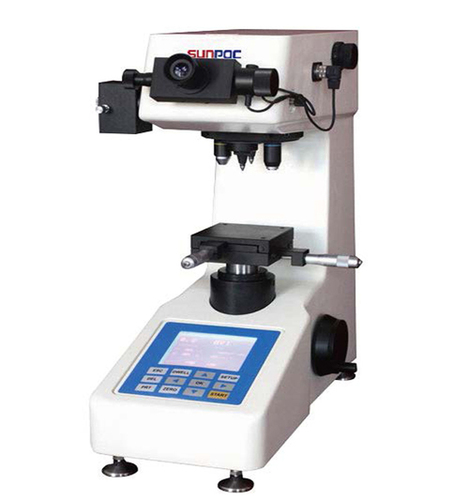

SMV-402 Hardness Tester
